Widia

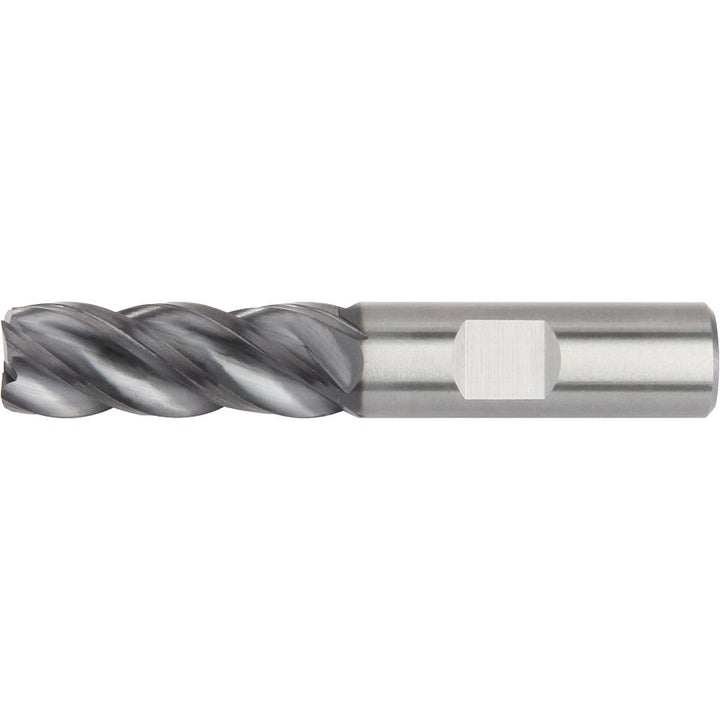

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Widia 5576600

MFR# 5576600Series 4V05

$74.94List $96.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 5576600 is a 3/8 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1/2 length of cut, 2 overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1/2

Length typeRegular

Material gradeWP15PE

Mill diameter in3/8

Neck diameter0.3750

Neck length0.5000

Number of flutes4

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Reach length0.5000

Secondary workpiece materialHigh-Temp Alloy

Shank diameter in3/8

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
