Widia

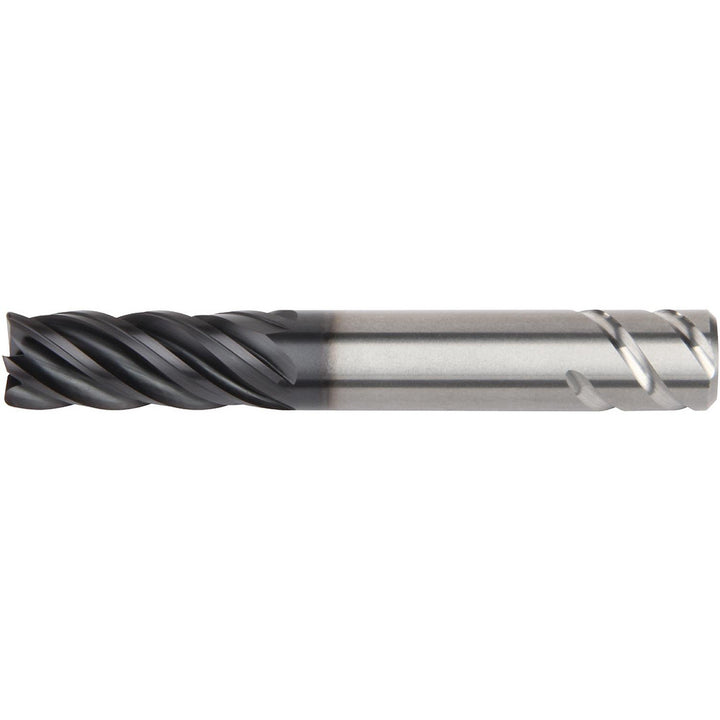

1/2in" 5-Flute Solid Carbide Square End Mill, WS15PE - Widia 5594871

MFR# 5594871Series 5V0E

$142.89List $183.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2in

Flutes5

MaterialSolid Carbide

CoatingWS15PE

Description

The Widia 5594871 is a 1/2in 5-flute Solid Carbide (WS15PE) square end mill with a WS15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-1/4in length of cut, 3in overall length. Series 5V0E.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWS15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1-1/4in

Length typeRegular

Material gradeWS15PE

Mill diameter in1/2in

Neck diameter0.5000in

Neck length1.2500

Number of flutes5

Overall length in3in

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length1.25

Secondary workpiece materialStainless Steel

Shank diameter in1/2in

Shank typeWeldon Flat

Variable helixNo

Variable indexNo
