Widia

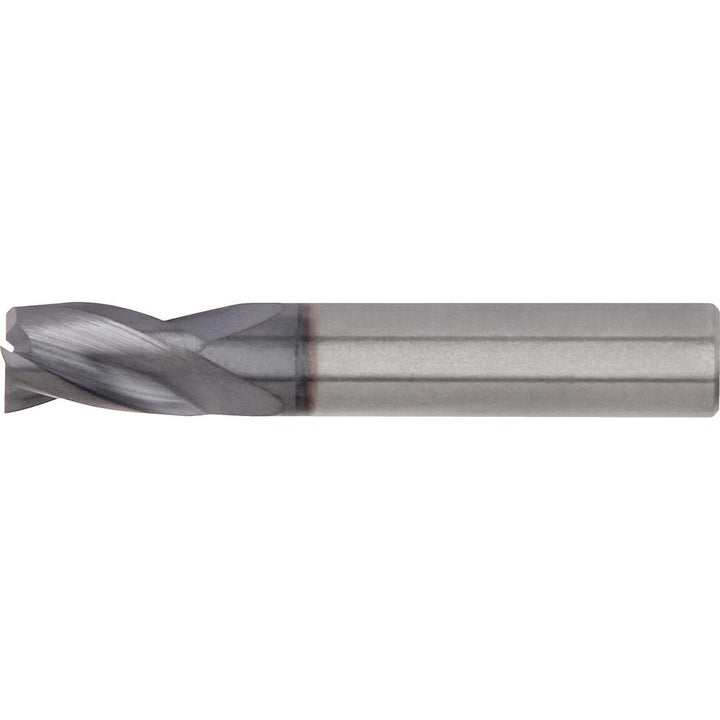

1/4" 3-Flute Solid Carbide Square End Mill, TiAlN - Widia 6144156

MFR# 6144156Series I3S

$26.94List $34.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The Widia 6144156 is a 1/4 3-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. 3/4 length of cut, 2-1/2 overall length. Series I3S.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in3/4

Length typeRegular

Material gradeTiAlN

Mill diameter in1/4

Neck diameter0.2500

Neck length0.7500

Number of flutes3

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous

Secondary workpiece materialCast Iron; Stainless Steel; Aluminum & Non-Ferrous; Steel

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
