Widia

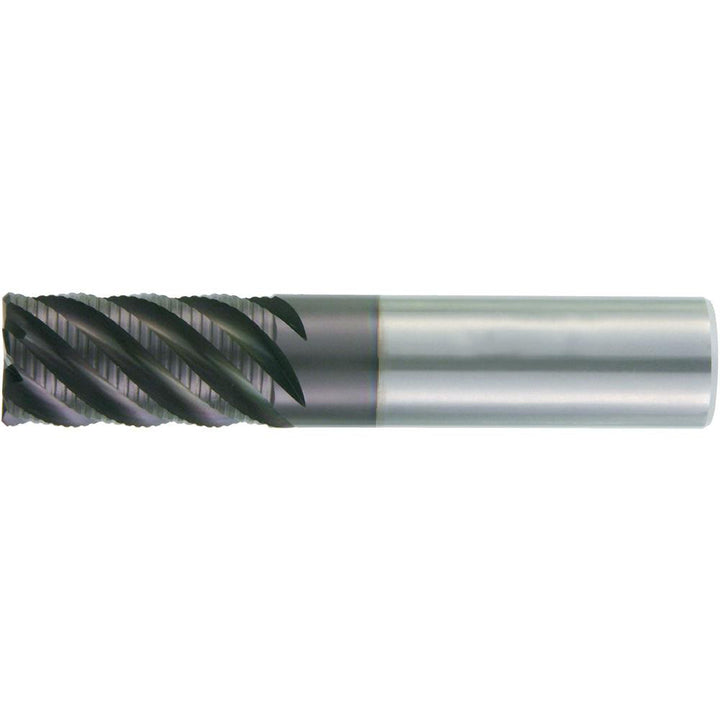

5/8" 6-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 6441865

MFR# 6441865Series 4U80

$197.18List $252.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes6

MaterialSolid Carbide

CoatingWS15PE

Description

The Widia 6441865 is a 5/8 6-flute Solid Carbide (WS15PE) corner radius end mill with a WS15PE finish for longer tool life. Suited for stainless steel, high temperature alloy. 1-7/8 length of cut, 4 overall length. Series 4U80.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishWS15PE

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-7/8

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material gradeWS15PE

Material removal typeRoughing

Mill diameter in5/8

Number of flutes6

Overall length in4

PitchClose

Primary workpiece materialStainless Steel; High Temperature Alloy

Reach length in1-7/8

Secondary workpiece materialSteel; Cast Iron; Hard Material

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
