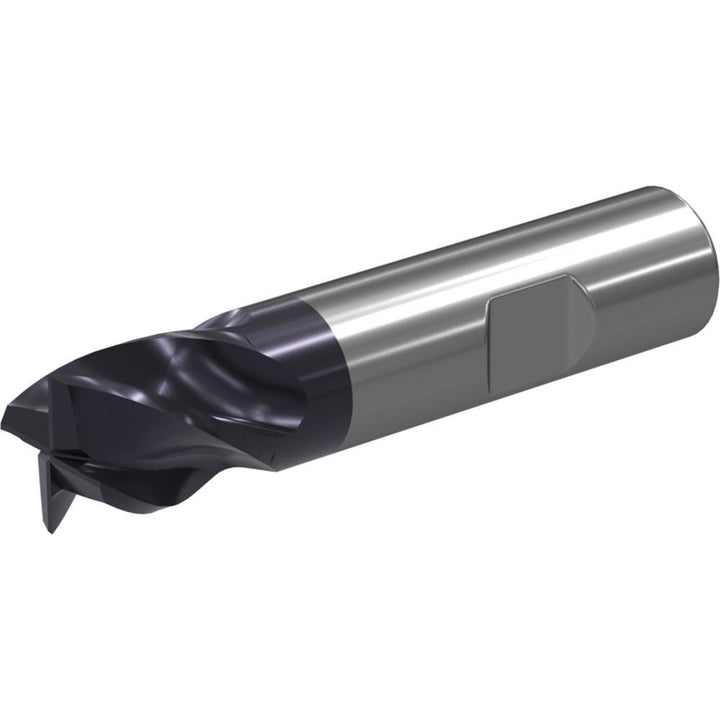

0.7500" 4-Flute Solid Carbide Roughing & Finishing End Mill, WU20PE - Widia 6945718

Widia

0.7500" 4-Flute Solid Carbide Roughing & Finishing End Mill, WU20PE - Widia 6945718

MFR# 6945718Series W421

$191.36List $241.16 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWU20PE

Description

The Widia 6945718 is a 0.7500 4-flute Solid Carbide (WU20PE) roughing & finishing end mill with a WU20PE finish for longer tool life. 2-1/4 length of cut. Series W421.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWU20PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle37/39
Length of cut in2-1/4
Length typeRegular
Material gradeWU20PE
Mill diameter0.7500
Mill diameter frac in3/4
Neck diameter in0.7500
Number of flutes4
Shank diameter in3/4
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
