YG-1

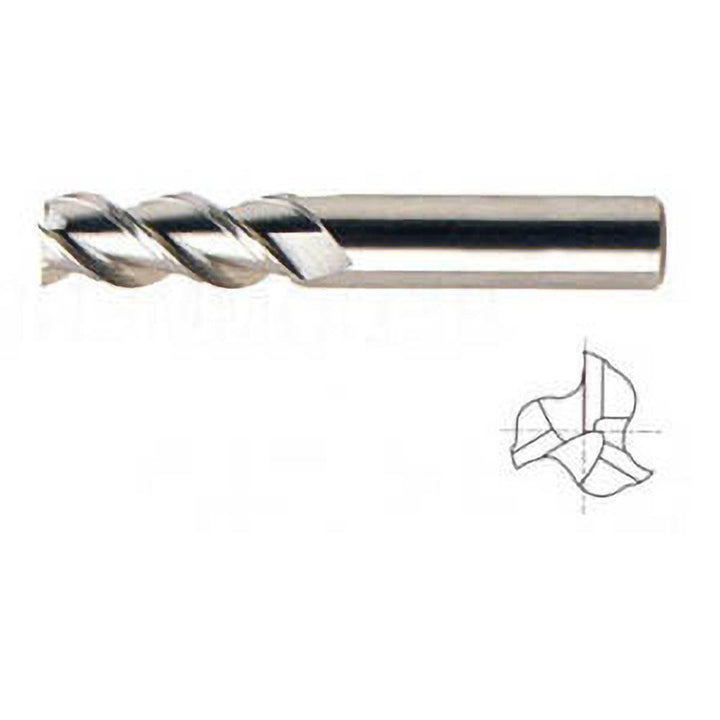

1/4in" 3-Flute Solid Carbide Square End Mill, TiAlN - YG-1 34573TF

MFR# 34573TFSeries E5243

$47.82List $61.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4in

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The YG-1 34573TF is a 1/4in 3-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel. 3/4in length of cut, 2-1/2in overall length. Series E5243.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4in

Length of cut range0.7000 - 0.8000

Length typeRegular

Material gradeMicrograin

Mill diameter in1/4in

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes3

Overall length in2-1/2in

Primary workpiece materialSteel; Stainless Steel

Secondary workpiece materialCast Iron; Super Alloys & Titanium

Shank diameter in1/4in

Shank diameter tolerance+0.0000 to -0.0005 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
