YG-1

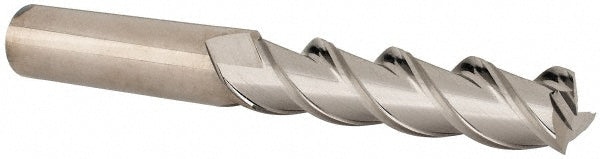

1/2in" 3-Flute Solid Carbide Square End Mill - YG-1 36593

MFR# 36593Series E5982

$109.56List $140.52 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2in

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The YG-1 36593 is a 1/2in 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 2in length of cut, 4in overall length. Series E5982.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2in

Length of cut range2.0000+

Length typeLong

Material gradeMicrograin

Mill diameter in1/2in

Mill diameter tolerance0.0000 to -0.0005 in

Number of flutes3

Overall length in4in

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2in

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
