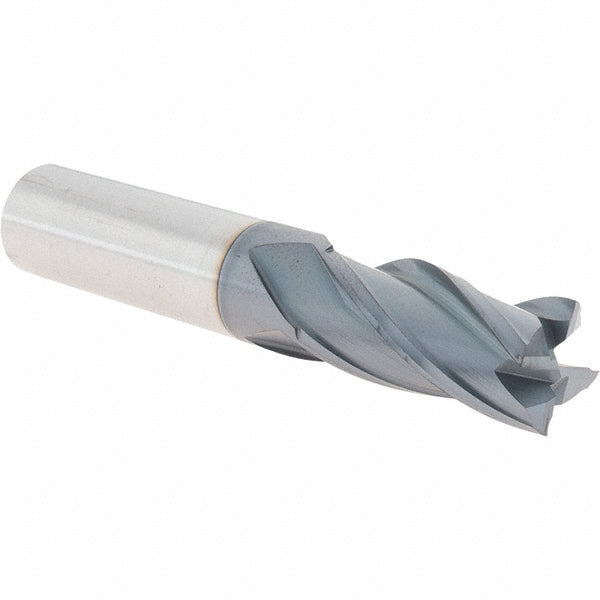

5/8in" 4-Flute Solid Carbide Square End Mill - YG-1 GM153040

YG-1

5/8in" 4-Flute Solid Carbide Square End Mill - YG-1 GM153040

MFR# GM153040

$168.43List $216.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The YG-1 GM153040 is a 5/8in 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4in length of cut, 3-1/2in overall length.

Specifications

CentercuttingNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in1-1/4in
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in3-1/2in
Shank diameter in5/8in
Shank diameter tolerance+0.0000 to -0.0003 in
Variable helixNo
Variable indexNo
