American Tool Service

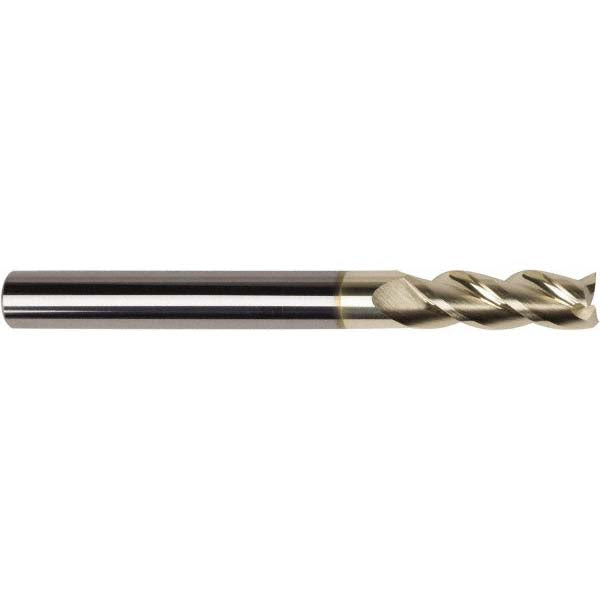

3/16" 3-Flute Solid Carbide Square End Mill, ZrN - American Tool Service 315-1875
MFR# 315-1875Series 315
$32.29List $40.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The American Tool Service 315-1875 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 315.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes3
Overall length in2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/16
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Tir maximum0.0010
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
GWS3/16" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 100952
$49.58
RobbJack3/16" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-06
$41.87
ProMax3/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-01216
$30.22
ProMax0.1875" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 119-01214
$52.23
