Cleveland

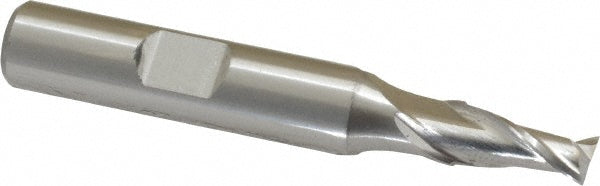

1/4" 2-Flute High Speed Steel Square End Mill - Cleveland C41607

MFR# C41607Series HG-2

$24.58List $31.52 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialHigh Speed Steel

CoatingBright/Uncoated

Description

The Cleveland C41607 is a 1/4 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1/2 length of cut, 2-7/16 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeRegular

Mill diameter in1/4

Number of flutes2

Overall length in2-7/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
