Cleveland

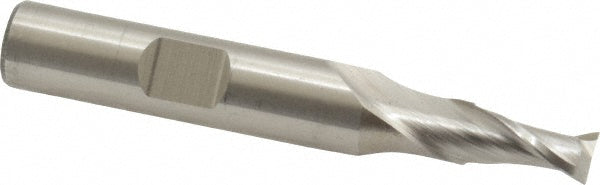

1/4" 2-Flute Cobalt Square End Mill - Cleveland C42607

MFR# C42607Series HGC-2

$22.69List $29.10 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialCobalt

Description

The Cleveland C42607 is a 1/4 2-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1/2 length of cut, 2-7/16 overall length. Series HGC-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeRegular

Material gradeM42

Mill diameter in1/4

Number of flutes2

Overall length in2-7/16

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
