Guhring

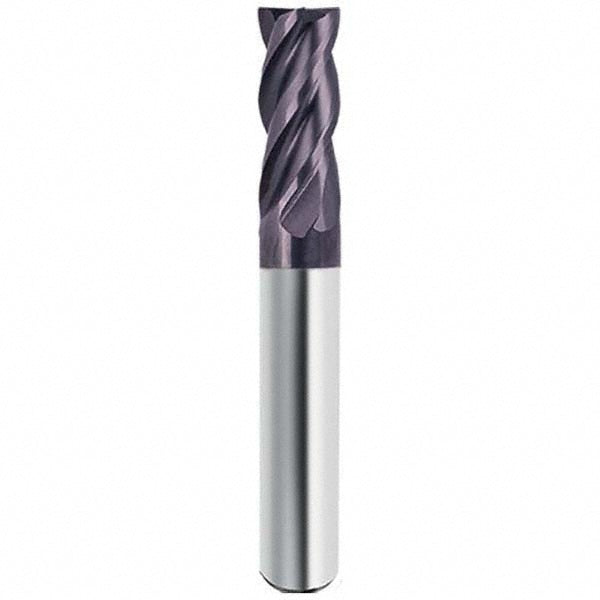

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199590158700

MFR# 9199590158700Series 19959

$151.09List $193.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199590158700 is a 5/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 19959.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle35; 38

Length of cut in1-1/4

Length typeStandard

Material gradeProprietary

Mill diameter in5/8

Mill diameter tolerancee8

Number of flutes4

Overall length in3-1/2

Secondary workpiece materialHard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes
