GWS

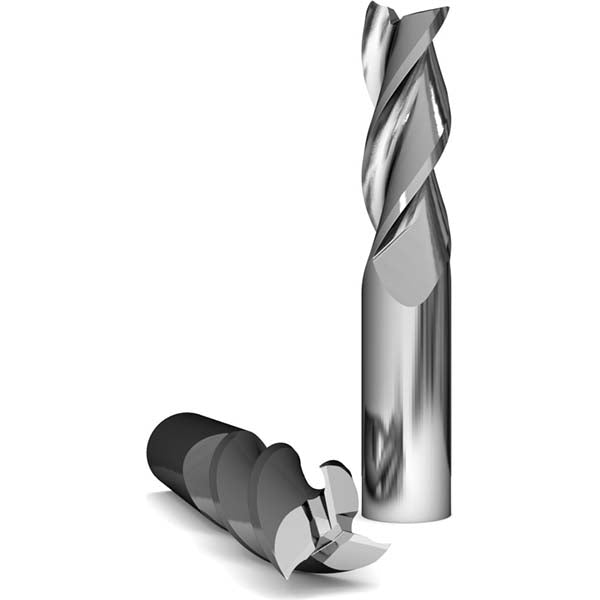

3/16" 3-Flute Solid Carbide Square End Mill - GWS 120671
MFR# 120671Series 1020
$22.19List $28.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
Description
The GWS 120671 is a 3/16 3-flute Solid Carbide square end mill. 5/8 length of cut, 2 overall length. Series 1020.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStandard
Mill diameter in3/16
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeSquare
Variable helixNo
