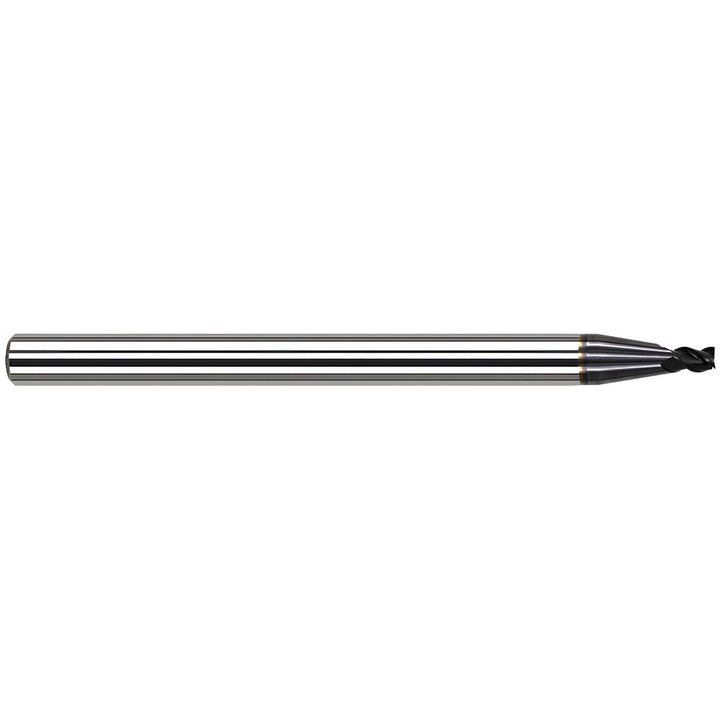

5/32" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 53710-C6

Harvey Tool

5/32" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 53710-C6

MFR# 53710-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills

$64.07List $74.80 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 53710-C6 is a 5/32 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/4 length of cut, 3 overall length. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in3/4
Length typeLong
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter in5/32
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes4
Overall length in3
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
