SGS

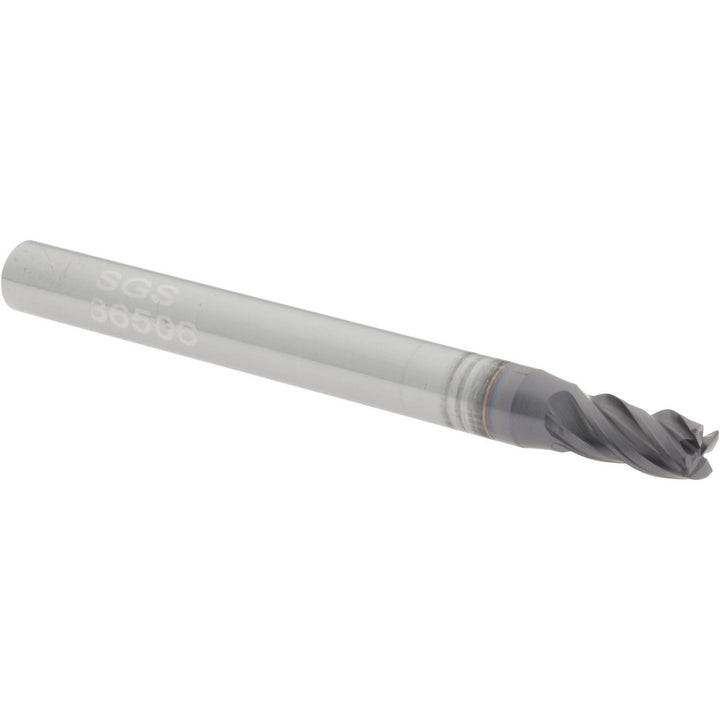

5/32" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36506

MFR# 36506Series Z16C

$29.32List $37.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes4

MaterialSolid Carbide

CoatingTX

Description

The SGS 36506 is a 5/32 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/16 length of cut, 2 overall length. Series Z16C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in5/16

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/32

Mill diameter tolerance-0.0012 to 0.0000 in

Number of flutes4

Overall length in2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
