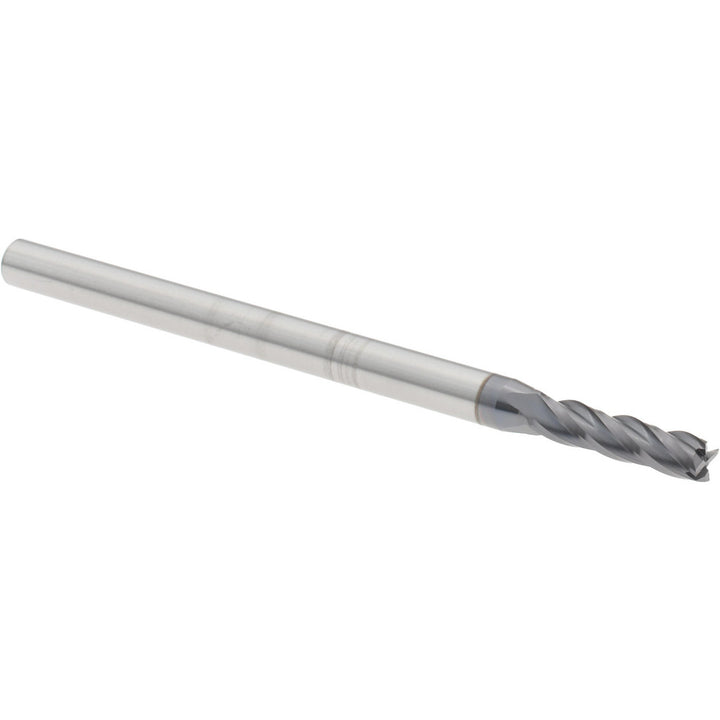

5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 888510-C3

Harvey Tool

5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 888510-C3

MFR# 888510-C3

$44.09List $51.48 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 888510-C3 is a 5/32 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 3 overall length.

Specifications

CentercuttingNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Mill diameter in5/32
Number of flutes4
Overall length in3
Shank diameter in3/16
Variable helixNo
