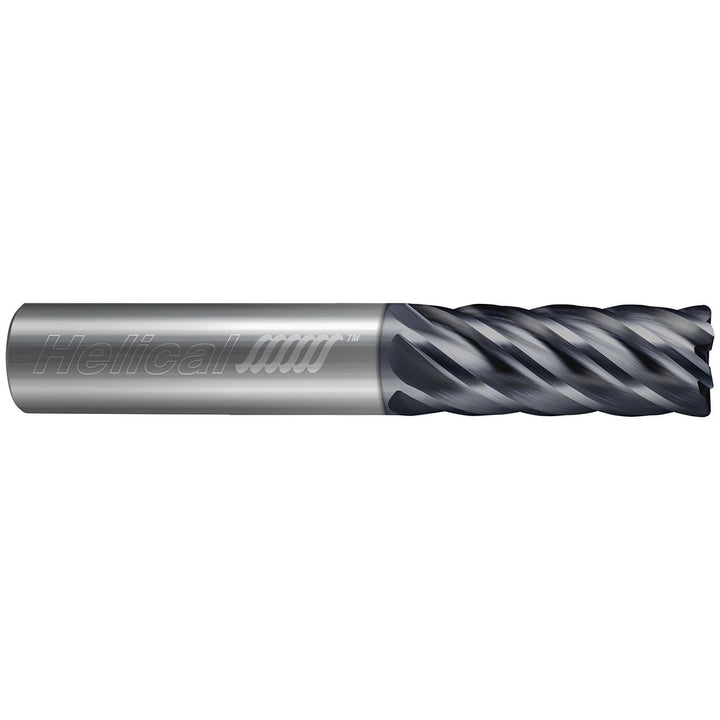

1/2in" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 82866

Helical Solutions

1/2in" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 82866

MFR# 82866Series HXVR

$154.66List $177.43 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes5
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 82866 is a 1/2in 5-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 1in length of cut, 3 overall length. Series HXVR.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Corner radius0.0400
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in1in
Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron
Material removal typeRoughing
Mill diameter in1/2in
Mill diameter toleranceh6
Number of flutes5
Overall length in3
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0003
Variable helixNo
Variable indexYes
