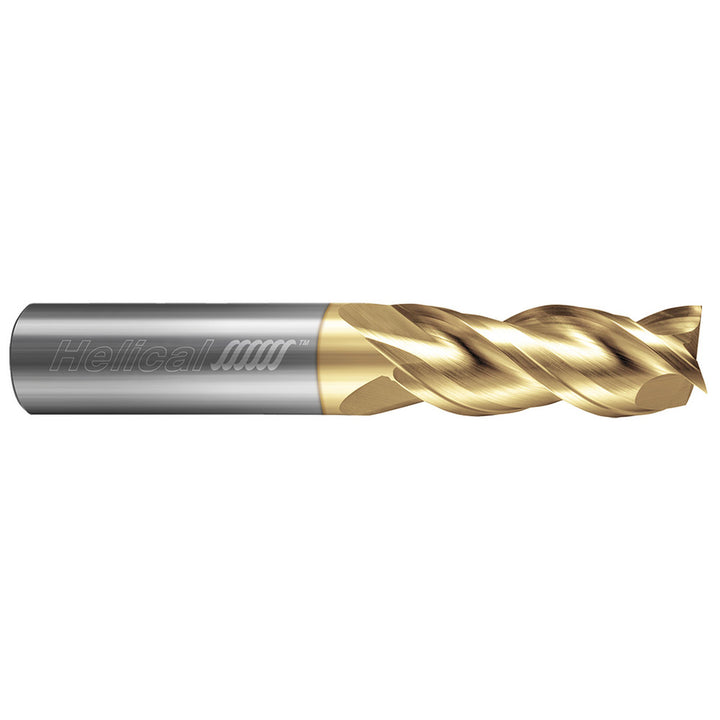

1/4" 3-Flute Solid Carbide Square End Mill, ZrN - Helical Solutions 83524
MFR# 83524Series End Mills for Aluminum - 3 Flute - Square - 40 deg Helix - Variable Pitch
$65.57List $76.56
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Helical Solutions 83524 is a 1/4 3-flute Solid Carbide square end mill with a Zplus finish for longer tool life. Suited for aluminum & non-ferrous. 1-3/4 length of cut, 4 overall length. Series End Mills for Aluminum - 3 Flute - Square - 40 deg Helix - Variable Pitch.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coating finish familyZrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in1-3/4
Material gradeSolid Carbide
Mill diameter in1/4
Number of flutes3
Overall length in4
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1/4
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
