3/32" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750329

Hertel

3/32" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750329

MFR# 750329

$10.48List $13.43 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

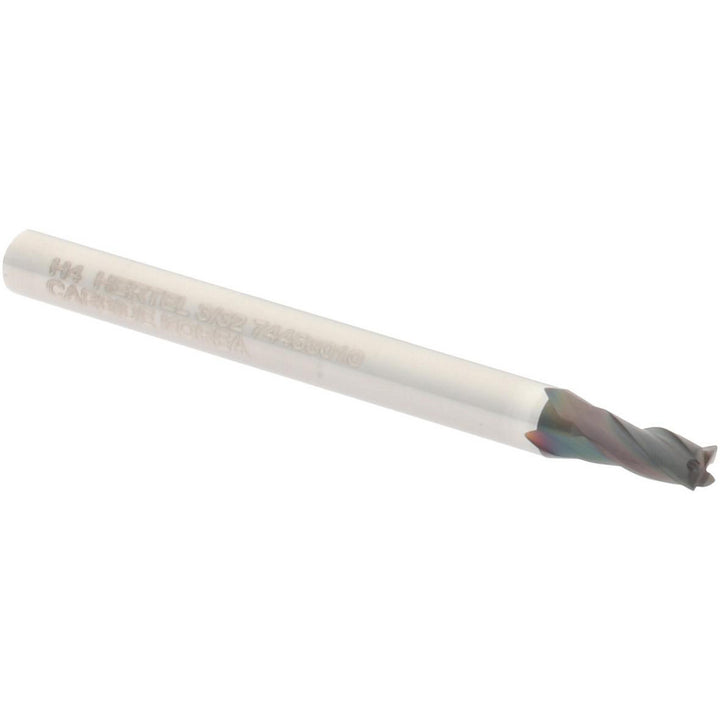

The Hertel 750329 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 3/16 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
