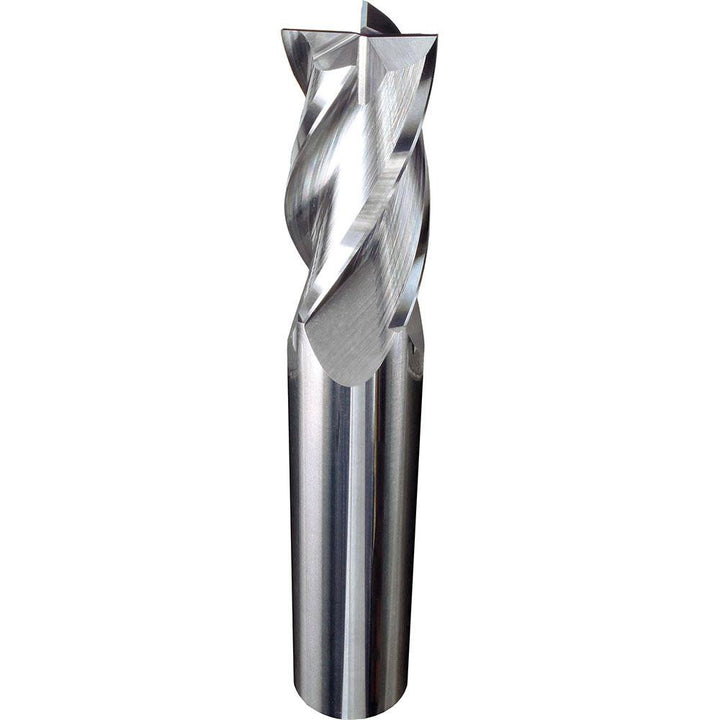

3/32" 4-Flute Solid Carbide Square End Mill - Internal Tool 41-0944

Internal Tool

3/32" 4-Flute Solid Carbide Square End Mill - Internal Tool 41-0944

MFR# 41-0944Series 41

$21.02List $26.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Internal Tool 41-0944 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy, hardened materials. 3/4 length of cut, 2-1/2 overall length. Series 41.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials
Shank diameter in1/8
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
