Iscar

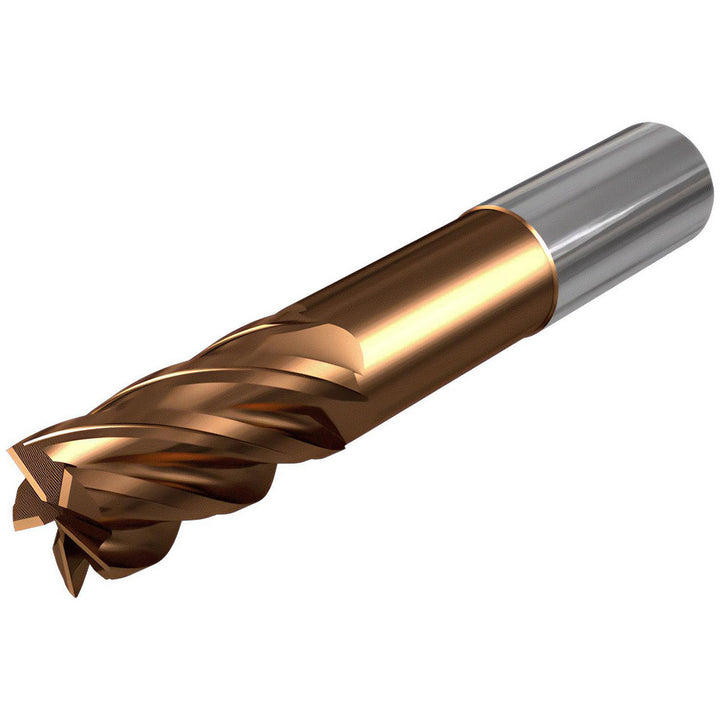

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398443

MFR# 3398443Cat# ECI-5 .75-3.25C.06VF6Series ECI-5-VF

$402.96List $483.20 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingAlTiCrSiN

Description

The Iscar 3398443 is a 3/4 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3-1/4 length of cut, 6 overall length. Series ECI-5-VF.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiCrSiN

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Length of cut in3-1/4

Length typeExtra Long

Manufacturers catalog numberECI-5 .75-3.25C.06VF6

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes5

Overall length in6

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in3-1/4

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
