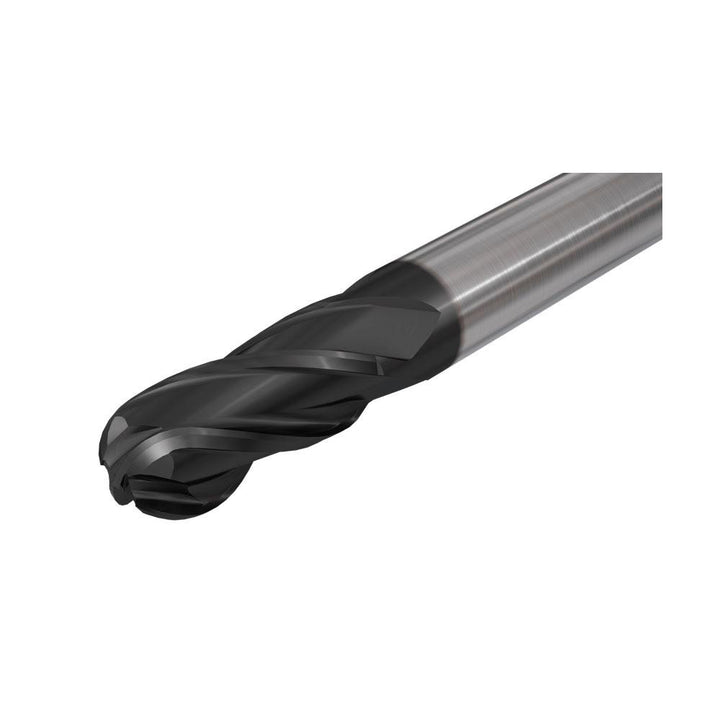

0.2362" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5620190

Iscar

0.2362" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5620190

MFR# 5620190Series EB-A-4

$56.45List $72.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620190 is a 0.2362 4-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Series EB-A-4.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut (mm)16.00
Length typeRegular
Material gradeSubmicron
Mill diameter0.2362
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes4
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance0.000 to -0.009 mm
Single or double endSingle
Variable helixNo
Variable indexNo
