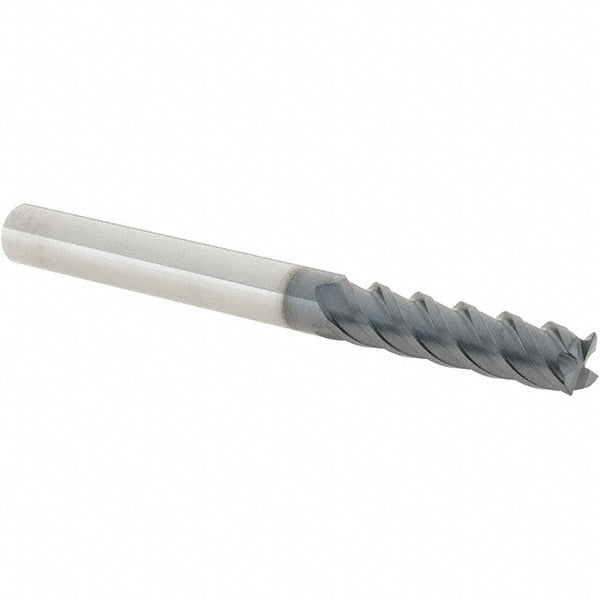

0.2362" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620557

Iscar

0.2362" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620557

MFR# 5620557

$59.49List $76.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620557 is a 0.2362 4-flute Solid Carbide (Submicron Grain) square end mill. 0.9449 length of cut.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.9449
Length of cut range0.8000 - 1.0000
Length typeLong
Material gradeSubmicron Grain
Mill diameter0.2362
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes4
Overall length (mm)65.00
Shank diameter (mm)6.00
Shank diameter tolerance0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
