Mitsubishi

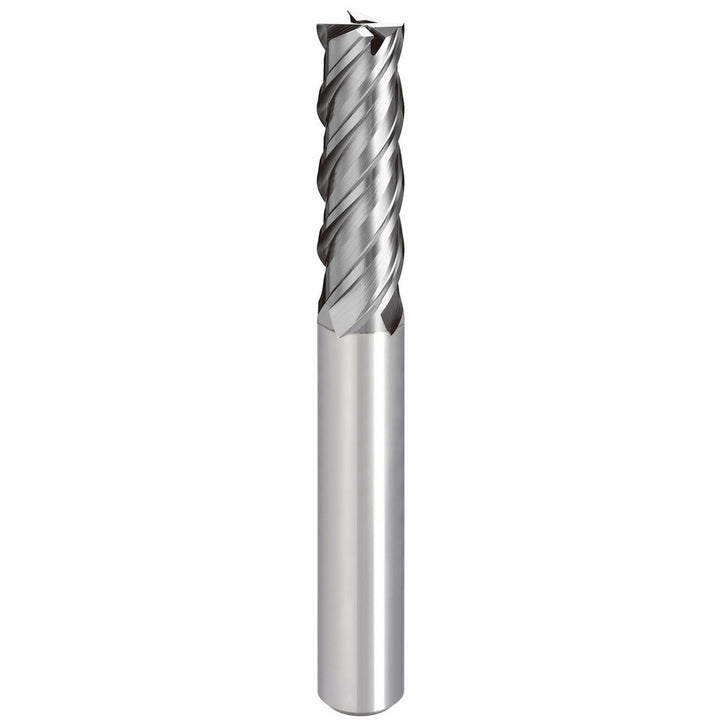

0.2362" 4-Flute Solid Carbide Square End Mill, AlCrN - Mitsubishi 691059

MFR# 691059Series VQ Endmill VHQJHV

$111.92List $143.53 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Mitsubishi 691059 is a 0.2362 4-flute Solid Carbide (Carbide) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, aluminum & non-ferrous, high-temp alloy. 0.9449 length of cut, 2.3622 overall length. Series VQ Endmill VHQJHV.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38-40

Length of cut0.9449

Length typeMedium

Material gradeCarbide

Mill diameter0.2362

Mill diameter tolerance-0.020; 0

Neck length0.9449

Number of flutes4

Overall length2.3622

Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy

Secondary workpiece materialAluminum & Non-Ferrous

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixYes

Variable indexYes
