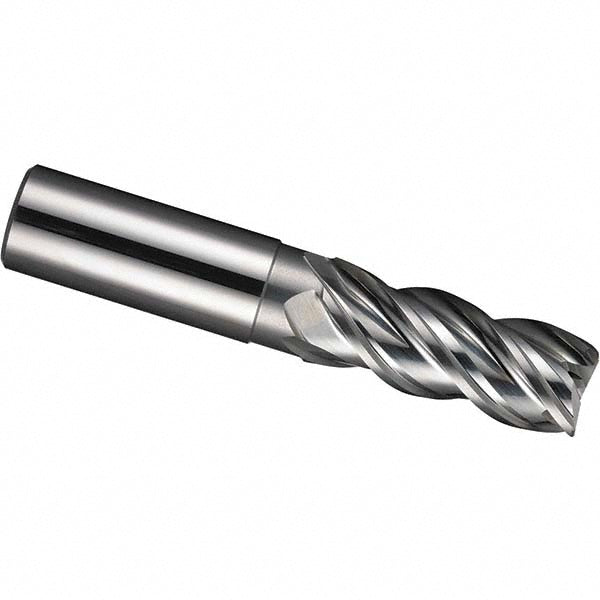

0.2362" 4-Flute Solid Carbide Square End Mill, TiB2 - SGS 44627

SGS

0.2362" 4-Flute Solid Carbide Square End Mill, TiB2 - SGS 44627

MFR# 44627Series 43MAPF

$142.20List $182.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 44627 is a 0.2362 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 0.945 length of cut, 2.284 overall length. Series 43MAPF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle41
Length of cut0.945
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.010 - -0.050 mm
Number of flutes4
Overall length2.284
Overall length tolerance+0.062/-0.062 in
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
