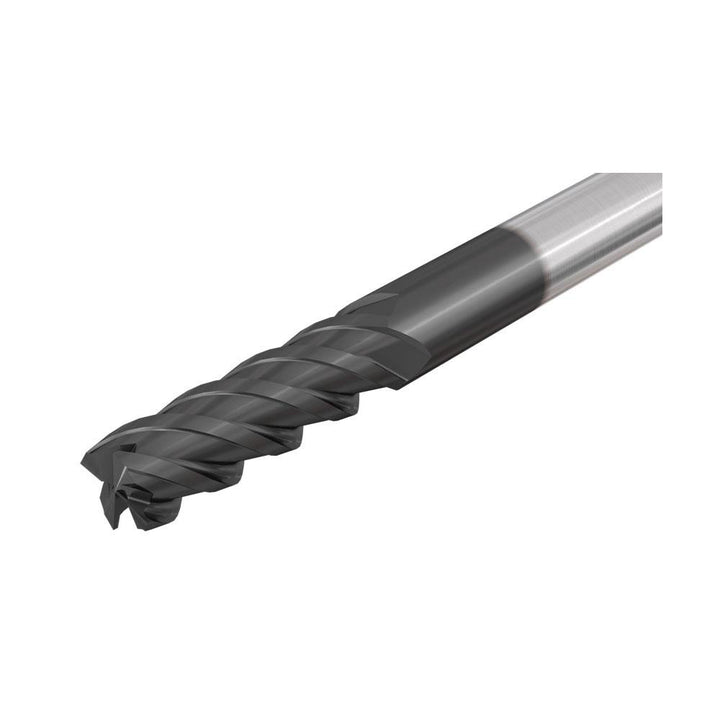

5/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620953

Iscar

5/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620953

MFR# 5620953

$66.27List $83.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620953 is a 5/16 4-flute Solid Carbide (IC900) square end mill with a TiAlN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeIC900
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Reach length0.75
Shank diameter in5/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
