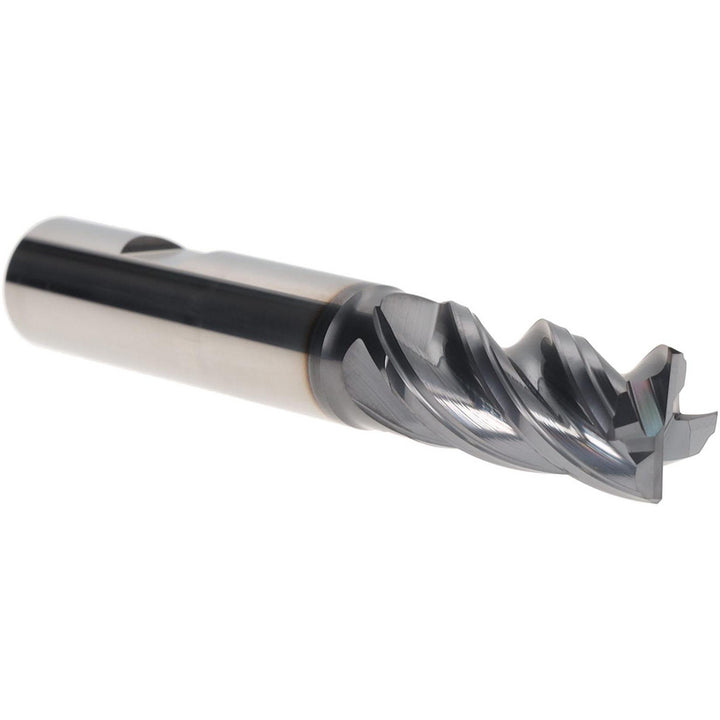

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622439

MFR# 5622439Cat# ECI-E4L625-1.25/1.7W62CFSeries ECI-E4-CF

$253.30List $324.40 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5622439 is a 5/8 4-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/4 length of cut, 4 overall length. Series ECI-E4-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingNo

Chamfer angle45

Chamfer length0.0240

Chamfer width0.0240

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38

Helix styleMedium

Length of cut in1-1/4

Length typeExtended

Manufacturers catalog numberECI-E4L625-1.25/1.7W62CF

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter in5/8

Neck diameter0.0240

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length1.7000

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
