Iscar

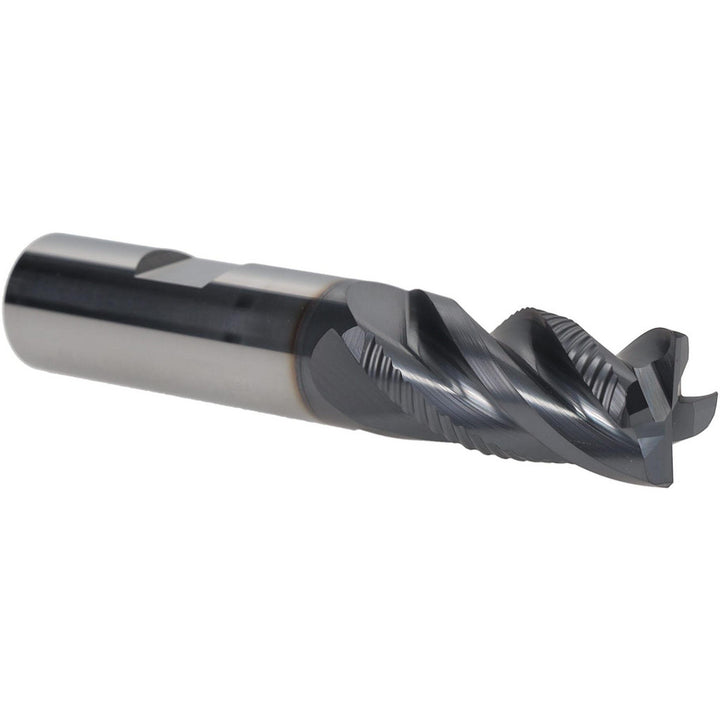

0.6250" 4-Flute Solid Carbide Corner Chamfer End Mill, TiAlN - Iscar 5622719

MFR# 5622719Series Solid Mill

$253.54List $324.70 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Iscar 5622719 is a 0.6250 4-flute Solid Carbide (Submicron) corner chamfer end mill with a TiAlN finish for longer tool life. 1-1/4 length of cut. Series Solid Mill.

Specifications

CentercuttingNo

Chamfer angle45

Chamfer length0.0240

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Chamfer

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1-1/4

Material gradeSubmicron

Maximum helix angle38

Mill diameter0.6250

Mill diameter frac in5/8

Number of flutes4

Shank diameter in5/8

Shank typeWeldon Flat

Single or double endSingle
