Iscar

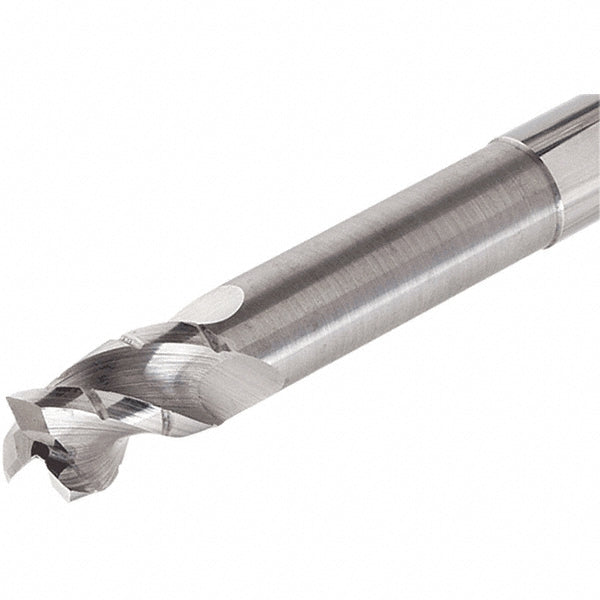

0.3937" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5623457
MFR# 5623457Series ECAP-H3-CF
$169.99List $217.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description
The Iscar 5623457 is a 0.3937 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. Series ECAP-H3-CF.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishUncoated
Coolant throughYes
Corner radius0.0079
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut1.5000
Length typeMedium
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter0.3937
Mill diameter toleranceh6
Number of flutes3
Overall length (mm)80.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length1.5748
Shank diameter (mm)10.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
