0.3937" 3-Flute Solid Carbide Square End Mill - OSG 403-3937

OSG

0.3937" 3-Flute Solid Carbide Square End Mill - OSG 403-3937

MFR# 403-3937Series 403

$33.56List $43.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide

Description

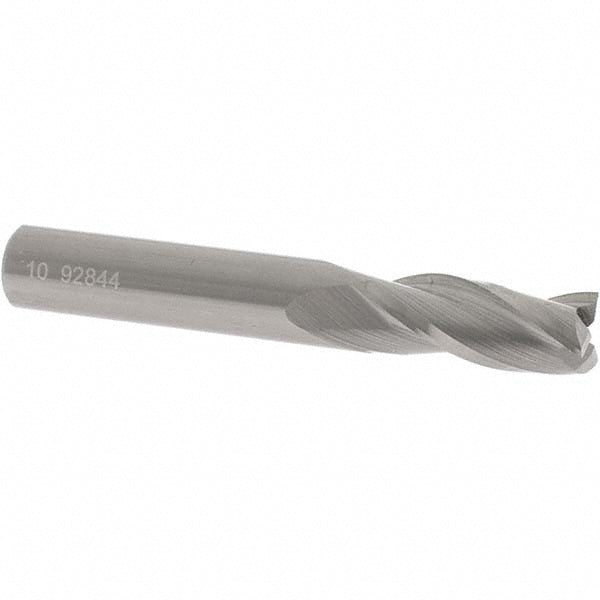

The OSG 403-3937 is a 0.3937 3-flute Solid Carbide square end mill. 0.9843 length of cut. Series 403.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.9843
Length of cut range0.8000 - 1.0000
Length typeRegular
Mill diameter0.3937
Number of flutes3
Overall length (mm)70.00
Shank diameter (mm)10.00
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
