Walter-Prototyp

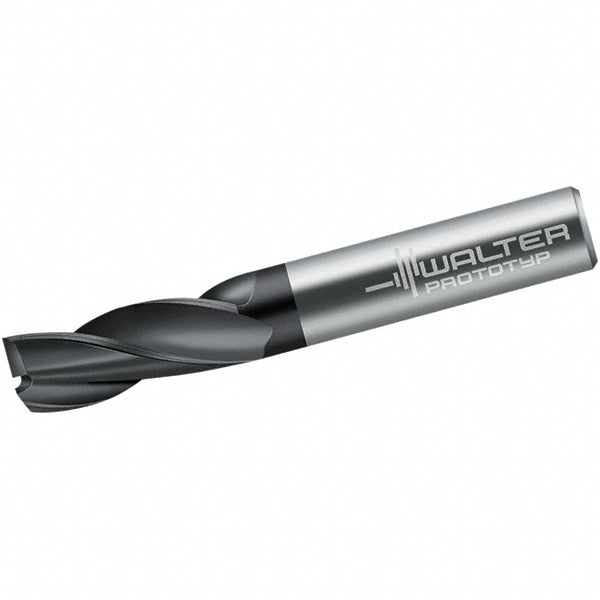

0.3937" 3-Flute Solid Carbide Square End Mill, Diamond - Walter-Prototyp 5082268

MFR# 5082268Series H3027419

$258.60List $331.67 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingDiamond

Description

The Walter-Prototyp 5082268 is a 0.3937 3-flute Solid Carbide (A1007) square end mill with a Diamond finish for longer tool life. Suited for non-iso. 1.2598 length of cut. Series H3027419.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDiamond

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut1.2598

Length of cut range1.2500 - 1.5000

Length typeExtra Long

Material gradeA1007

Mill diameter0.3937

Mill diameter toleranceh10

Number of flutes3

Overall length (mm)100

Overall length tolerance+2.00 mm

Primary workpiece materialNon-ISO

Reach length1.26

Shank diameter0.3937

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Tir maximum (mm)0.02

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

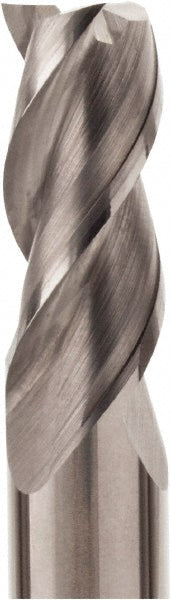

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
