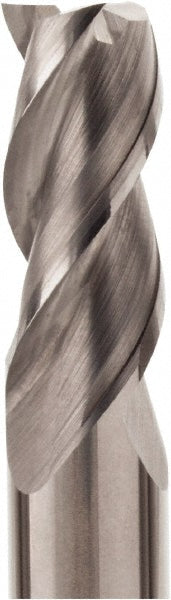

0.3937" 3-Flute Solid Carbide Square End Mill - Seco 02881817

Seco

0.3937" 3-Flute Solid Carbide Square End Mill - Seco 02881817

MFR# 02881817Series JS413

$119.38List $147.97 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Seco 02881817 is a 0.3937 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1.5748 length of cut. Series JS413.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut1.5748
Length of cut range1.5000 - 2.0000
Length typeExtended
Material gradeMicrograin
Mill diameter0.3937
Mill diameter tolerancee8
Number of flutes3
Overall length (mm)100
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3937
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Variable helixNo
