SGS

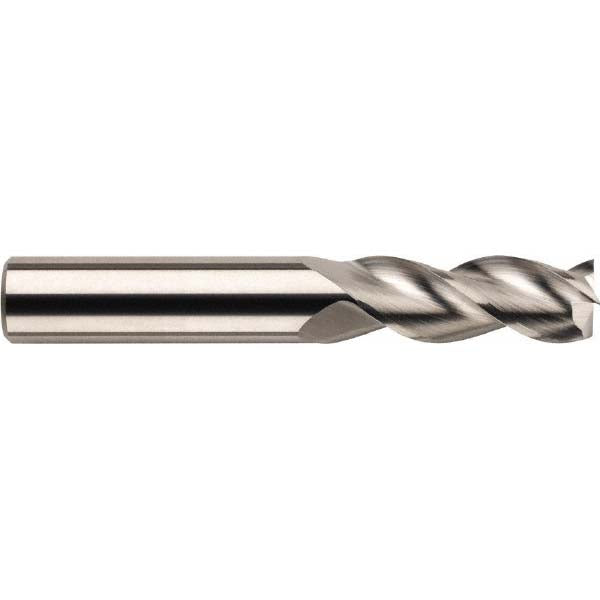

0.3937" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44719

MFR# 44719Series 43M

$79.88List $102.45 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 44719 is a 0.3937 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 0.8661 length of cut. Series 43M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut0.8661

Length of cut range0.8000 - 1.0000

Length typeRegular

Material gradeMicrograin

Mill diameter0.3937

Mill diameter tolerance+0.000/-0.009 mm

Number of flutes3

Overall length (mm)72

Primary workpiece materialNon-Ferrous Metal

Shank diameter0.3937

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
