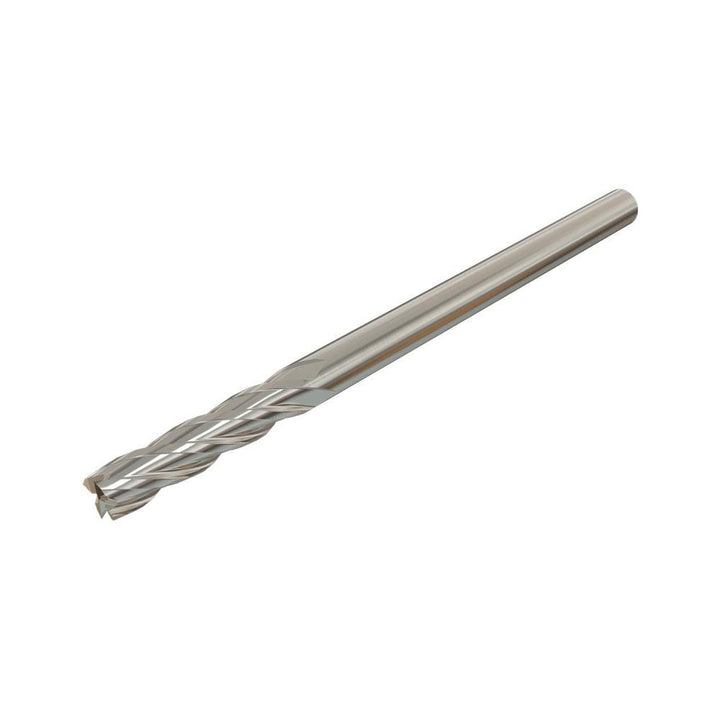

0.1181" 4-Flute Solid Carbide Square End Mill - Iscar 5650723

Iscar

0.1181" 4-Flute Solid Carbide Square End Mill - Iscar 5650723

MFR# 5650723

$36.78List $47.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The Iscar 5650723 is a 0.1181 4-flute Solid Carbide (Fine Grain) square end mill. Suited for non-ferrous metal. 1.1811 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.1811
Length of cut range1.0000 - 1.2500
Length typeExtra Long
Material gradeFine Grain
Mill diameter0.1181
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes4
Overall length (mm)75.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)3.00
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
