0.1181" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5651178

Iscar

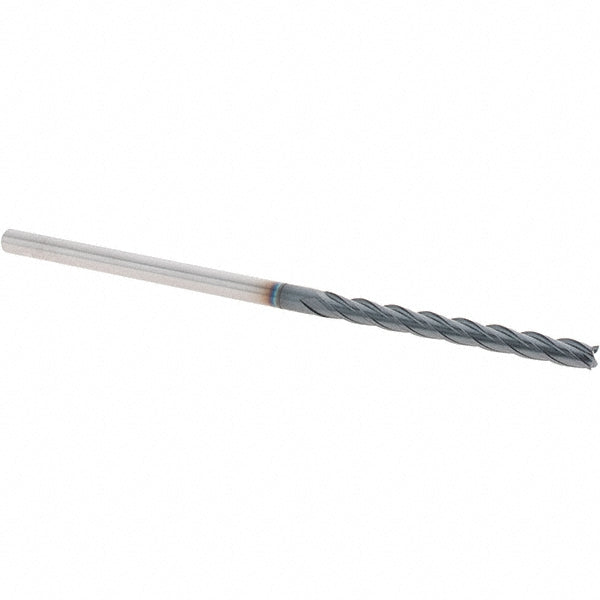

0.1181" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5651178

MFR# 5651178

$48.33List $61.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5651178 is a 0.1181 4-flute Solid Carbide (Submicron Grain) square end mill. 1.1811 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.1811
Length of cut range1.0000 - 1.2500
Length typeExtra Long
Material gradeSubmicron Grain
Mill diameter0.1181
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes4
Overall length (mm)75.00
Shank diameter (mm)3.00
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
