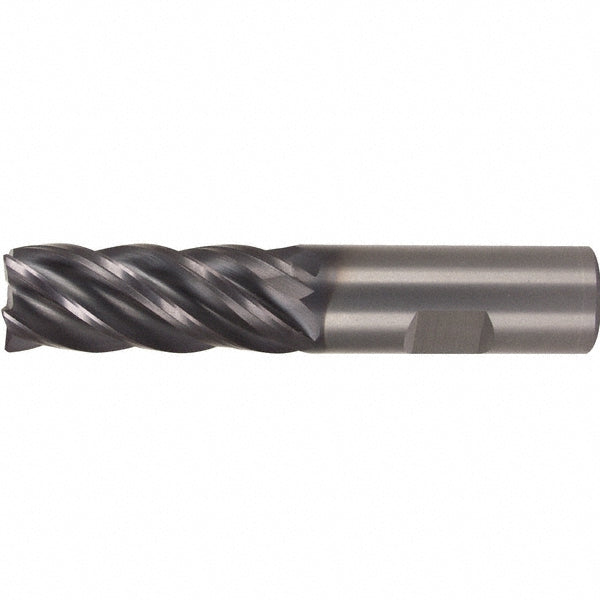

0.5000" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 3580869

Kennametal

0.5000" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 3580869

MFR# 3580869Series UCDE

$196.17List $251.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 3580869 is a 0.5000 5-flute Solid Carbide (KC634M) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 3 overall length. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut (mm)31.75
Material gradeKC634M
Mill diameter0.5000
Number of flutes5
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in1/2
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexYes
