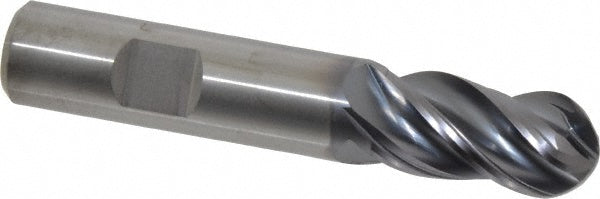

5/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 4067290

Kennametal

5/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 4067290

MFR# 4067290Cat# HPHVBN625S4125Series HPHVBN

$466.73List $588.19 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4067290 is a 5/8 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1-1/4 length of cut, 3-1/2 overall length. Series HPHVBN.

Specifications

Additional informationVersatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi I Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling. Harvi I Solid Carbide End Mills Features Unequal Flute Spacing
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleMedium
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog numberHPHVBN625S4125
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.3125
Number of flutes4
Overall length in3-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Reach length in1-1/4
Shank diameter in5/8
Shank diameter tolerance+0.0000/-0.0043 in
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
