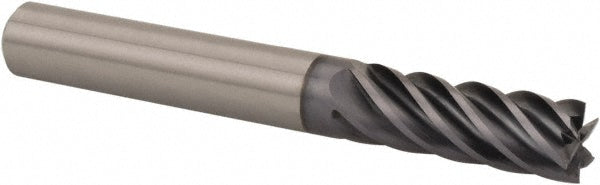

1/2" 6-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 5351821

Kennametal

1/2" 6-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 5351821

MFR# 5351821Series UJDE

$207.61List $261.64 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 5351821 is a 1/2 6-flute Solid Carbide (KCSM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 1-1/4 length of cut, 3 overall length. Series UJDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeStub
Material gradeKCSM15
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes6
Overall length in3
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials
Shank diameter in1/2
Shank diameter tolerance+0.0000/-0.00043 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
