Kennametal

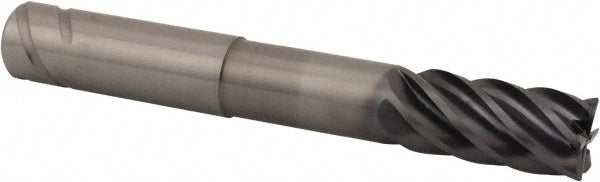

1" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5351936

MFR# 5351936Series UJDE

$902.90List $1,158.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5351936 is a 1 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-3/4 length of cut, 4-1/2 overall length. Series UJDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC-HSK Form A; HC-HSK Form A; HC-CV Form AD; HC-CV Form AD; ER Single Angle Standard Collets; Hydraulic Chuck Standard Line

Helix styleHigh

Length of cut in1-3/4

Length typeLong

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in1

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes6

Overall length in4-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in1

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeSafe-Lock

Single or double endSingle

Variable helixNo

Variable indexNo
