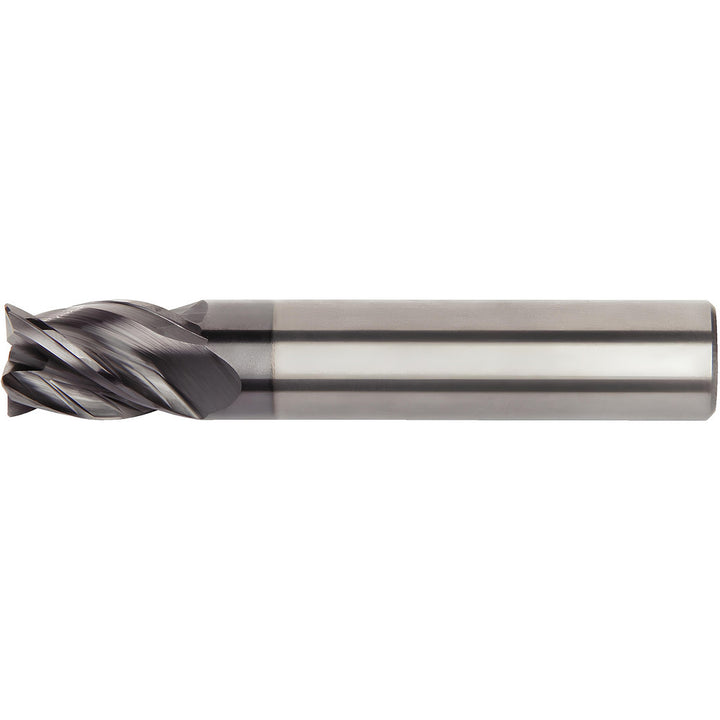

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6769614

Kennametal

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6769614

MFR# 6769614Cat# H1TE4CH0600S010HAMSeries H1TE

$77.36List $97.49 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6769614 is a 0.2362 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.15
Chamfer width (mm)0.15
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleVariable
Length of cut (mm)10.00
Length typeRegular
Manufacturers catalog numberH1TE4CH0600S010HAM
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter0.2362
Number of flutes4
Overall length (mm)54.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length (mm)10.00
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
