Kennametal

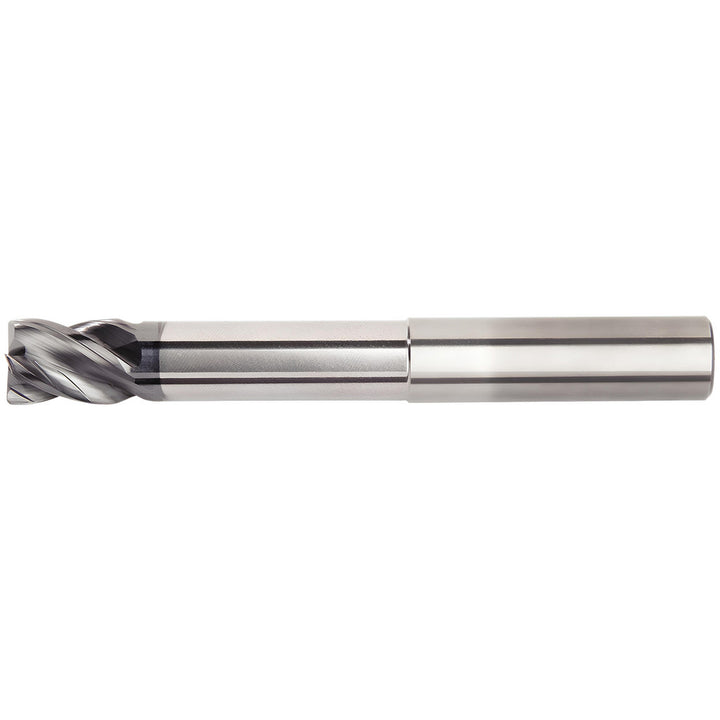

0.2362" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6929440

MFR# 6929440Cat# H1TE4RA0600E013HAR100MSeries H1TE

$97.72List $125.33 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6929440 is a 0.2362 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius (mm)1.00

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withER Single Angle Standard Collets

Length of cut1.5000

Length typeStandard

Manufacturers catalog numberH1TE4RA0600E013HAR100M

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.2362

Neck diameter (mm)5.64

Number of flutes4

Overall length (mm)70.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length (mm)31.98

Shank diameter (mm)6.00

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
