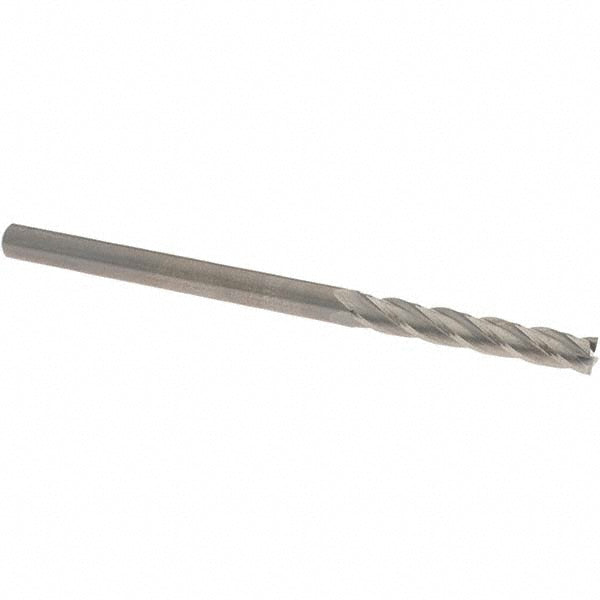

0.2362" 4-Flute Solid Carbide Square End Mill - OSG 484-2362

OSG

0.2362" 4-Flute Solid Carbide Square End Mill - OSG 484-2362

MFR# 484-2362Series 484

$37.09List $47.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The OSG 484-2362 is a 0.2362 4-flute Solid Carbide (Micrograin) square end mill. 1.4961 length of cut. Series 484.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.4961
Length of cut range1.2500 - 1.5000
Material gradeMicrograin
Mill diameter0.2362
Number of flutes4
Overall length (mm)100.00
Shank diameter (mm)6.00
Variable helixNo
Variable indexNo
