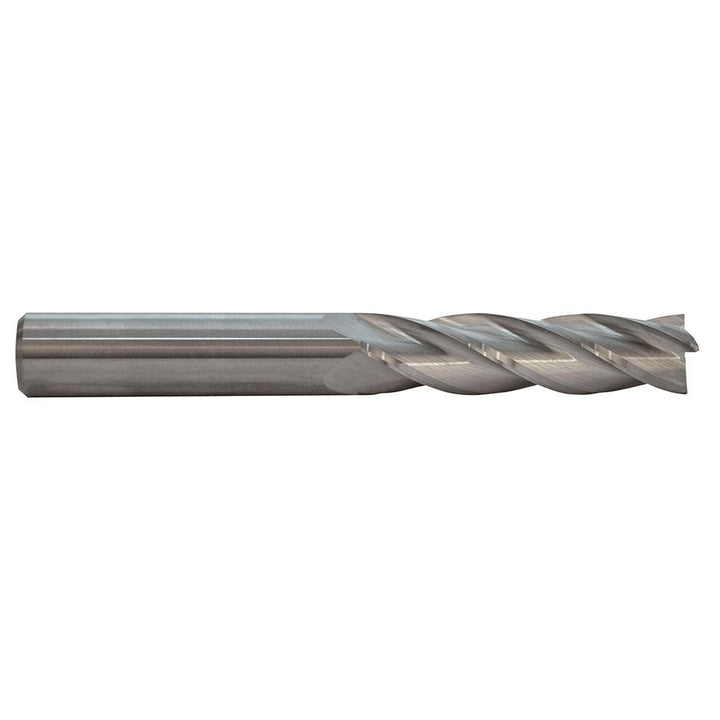

0.3543" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12235430

MFR# 12235430Series 122

$90.00List $115.44 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 12235430 is a 0.3543 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 1.3780 length of cut. Series 122.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut1.3780

Length of cut range1.2500 - 1.5000

Length typeLong

Material gradeMicrograin

Mill diameter0.3543

Mill diameter tolerance+0.000 to -0.076 mm

Number of flutes4

Overall length (mm)89.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter0.3937

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
