M.A. Ford.

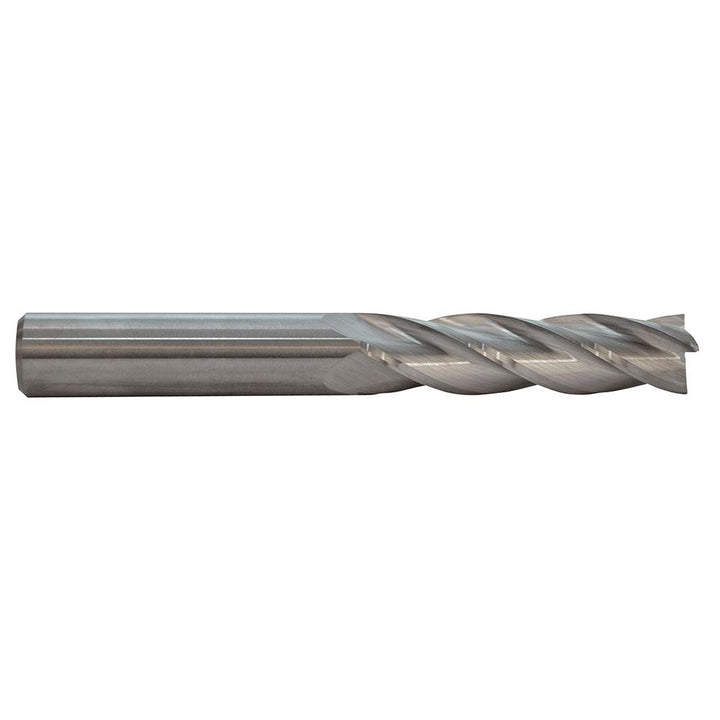

0.3543" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 12235430A

MFR# 12235430ASeries 122

$104.67List $134.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingALtima

Description

The M.A. Ford. 12235430A is a 0.3543 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 1.378 length of cut. Series 122.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut1.378

Length of cut range1.2500 - 1.5000

Length typeLong

Material gradeMicrograin

Mill diameter0.3543

Mill diameter tolerance+0.000/-0.076 mm

Number of flutes4

Overall length (mm)89

Shank diameter0.3543

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
