1/4" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13625004

M.A. Ford.

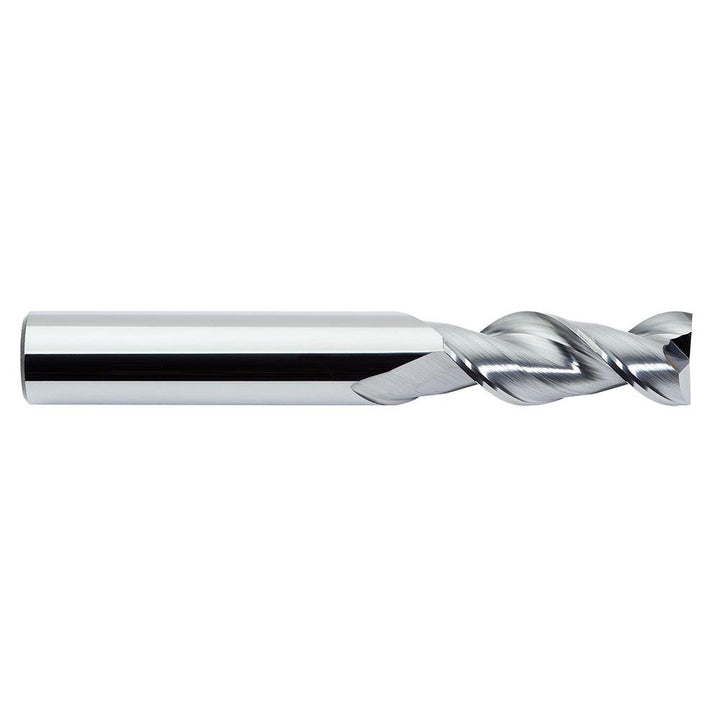

1/4" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13625004

MFR# 13625004Series 136

$55.92List $70.48 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 13625004 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1/2 length of cut, 2 overall length. Series 136.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes2
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
