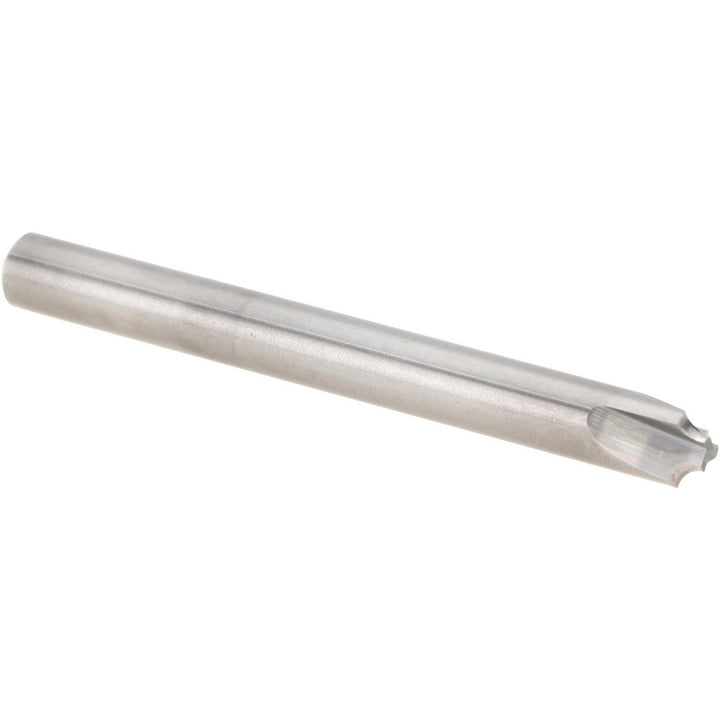

0.1250" 3-Flute Solid Carbide Corner Rounding End Mill - Melin Tool 16093

Melin Tool

0.1250" 3-Flute Solid Carbide Corner Rounding End Mill - Melin Tool 16093

MFR# 16093Series RMG

$32.23List $41.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Melin Tool 16093 is a 0.1250 3-flute Solid Carbide corner rounding end mill. Series RMG.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Helix angle0
Length of cut0.0630
Mill diameter0.1250
Number of flutes3
Radius in1/16
Radius tolerance+0.001 to -0.001
Shank diameter in1/4
Single or double endSingle
Tip diameter in1/8
