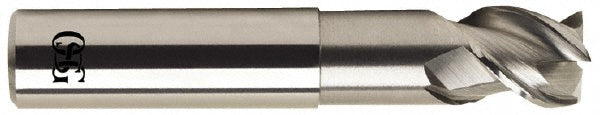

1" 3-Flute Solid Carbide Square End Mill - OSG 20431700

OSG

1" 3-Flute Solid Carbide Square End Mill - OSG 20431700

MFR# 20431700Series 2043

$388.85List $487.22 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide

Description

The OSG 20431700 is a 1 3-flute Solid Carbide square end mill. 1 length of cut, 5 overall length. Series 2043.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.9920
Number of flutes3
Overall length in5
Reach length in2-5/8
Shank diameter in1
Variable helixNo
Variable indexNo
