OSG

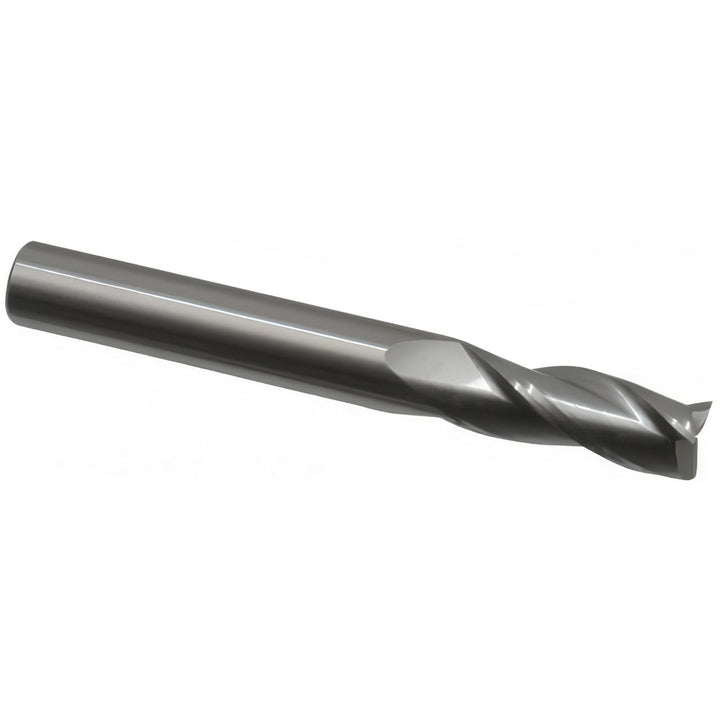

3/16" 3-Flute Solid Carbide Square End Mill, TiAlN - OSG 403-187511
MFR# 403-187511Series 403
$21.25List $26.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 403-187511 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 5/8 length of cut, 2 overall length. Series 403.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Number of flutes3
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
GWS3/16" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 100952
$49.58
RobbJack3/16" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-06
$41.87
ProMax3/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-01216
$30.22
ProMax0.1875" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 119-01214
$52.23
