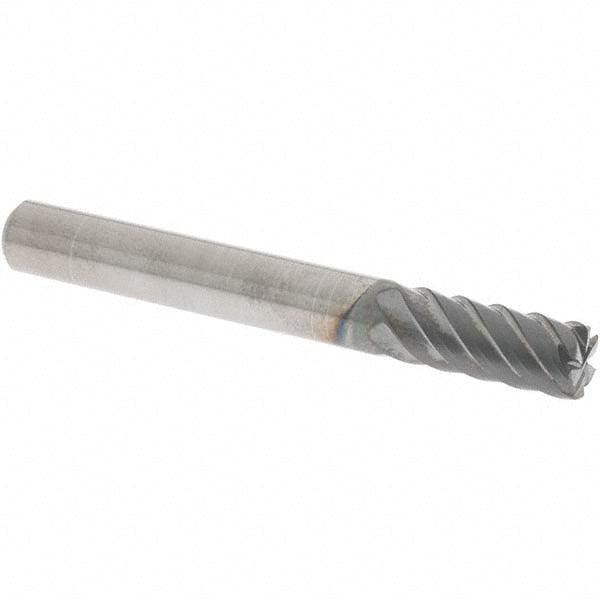

0.2362" 6-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 91440611

MFR# 91440611Series 9144

$199.35List $255.68 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingWXS

Description

The OSG 91440611 is a 0.2362 6-flute Solid Carbide (Micrograin) corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series 9144.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWXS

Coolant throughNo

Corner radius0.0197

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut1.2500

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeFinishing

Mill diameter0.2362

Mill diameter tolerance0.00 to -0.02 mm

Number of flutes6

Overall length (mm)50.00

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
