ProMax

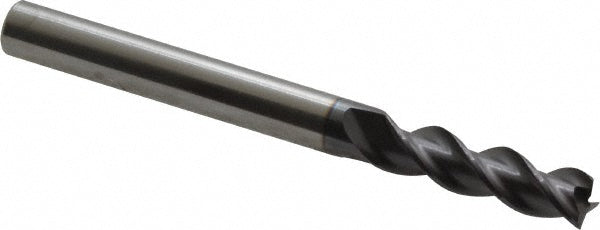

3/16" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-01214
MFR# 109-01214Series 109
$30.22List $38.09
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 109-01214 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 109.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
